APEX Vertical Racking System MK2

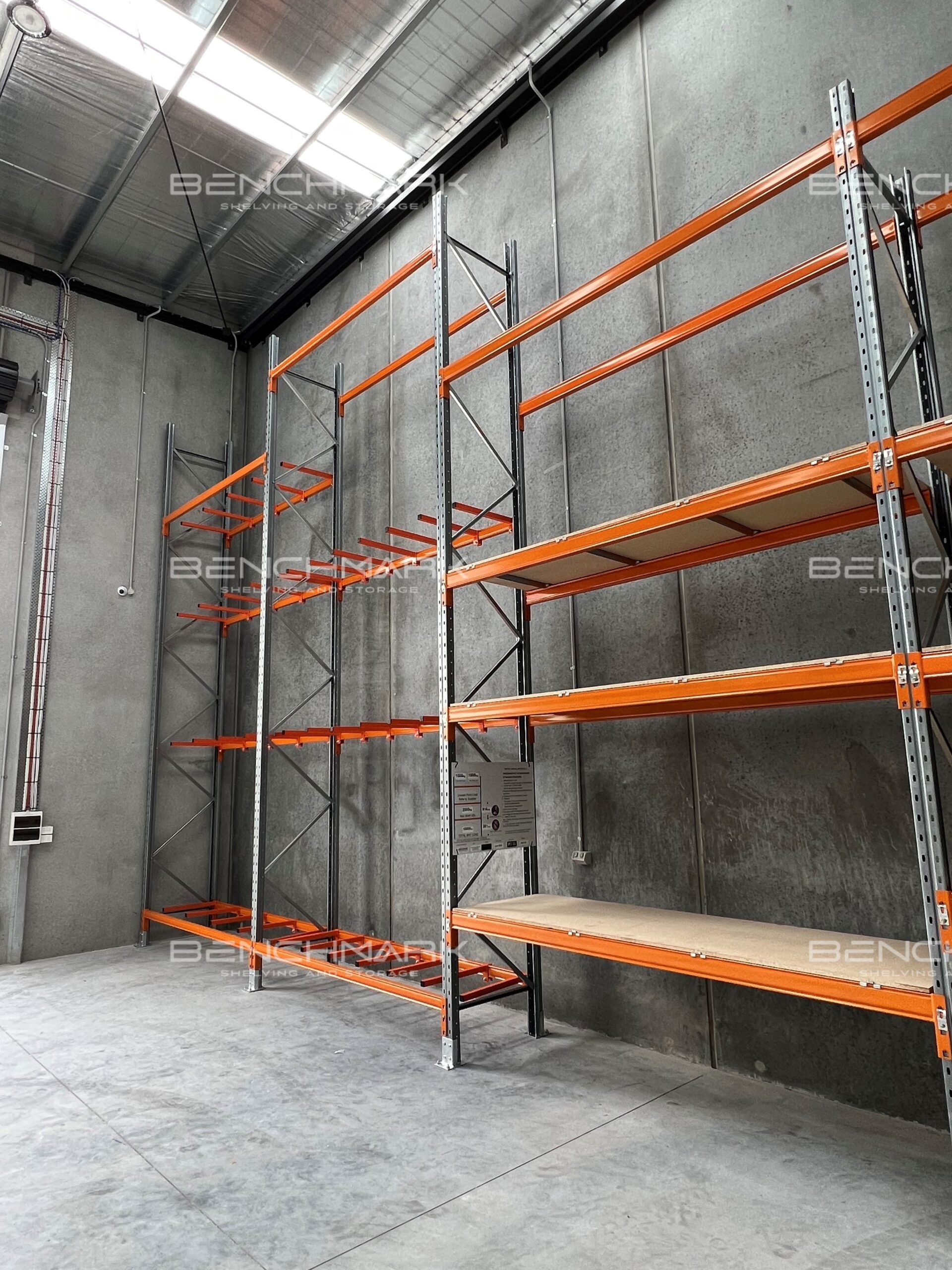

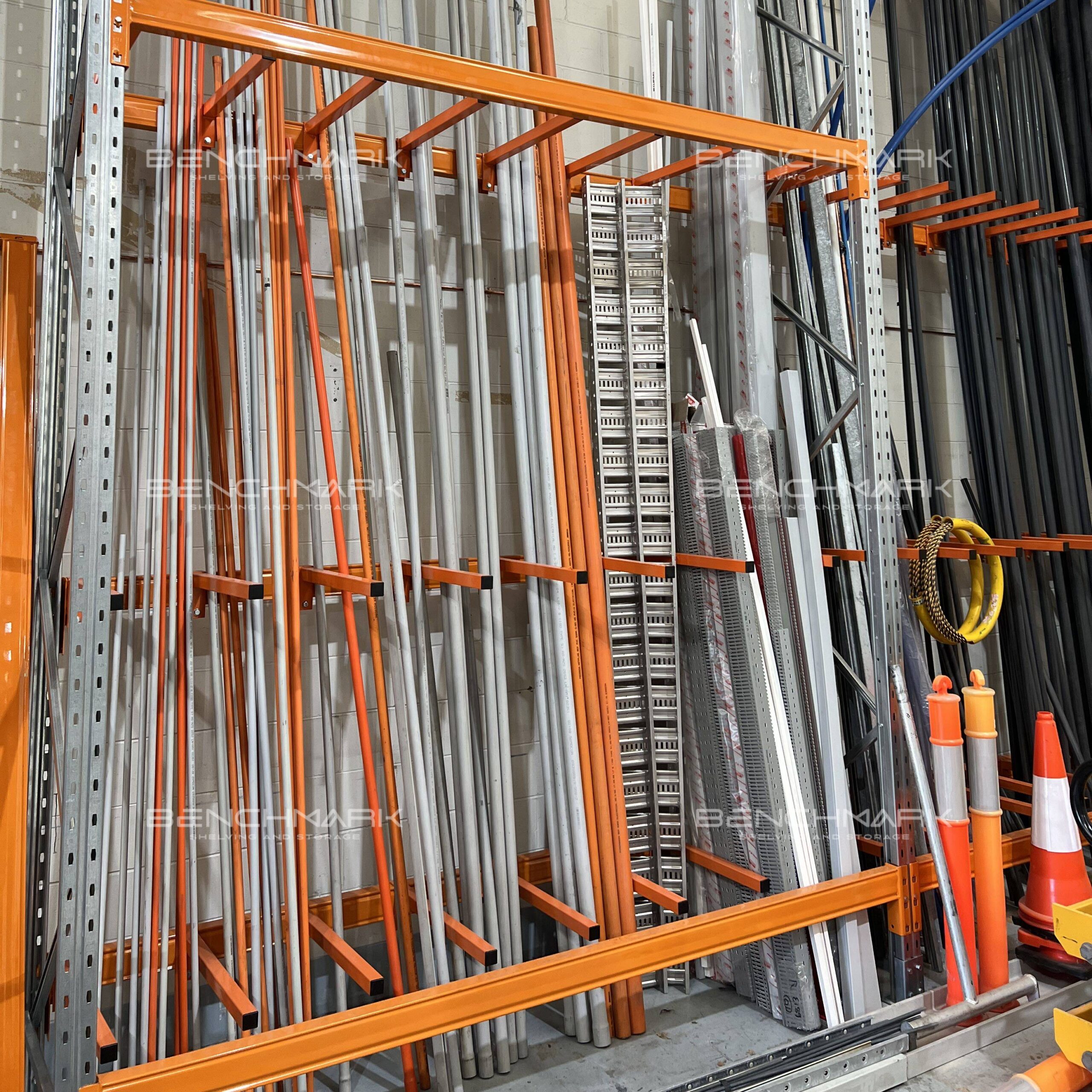

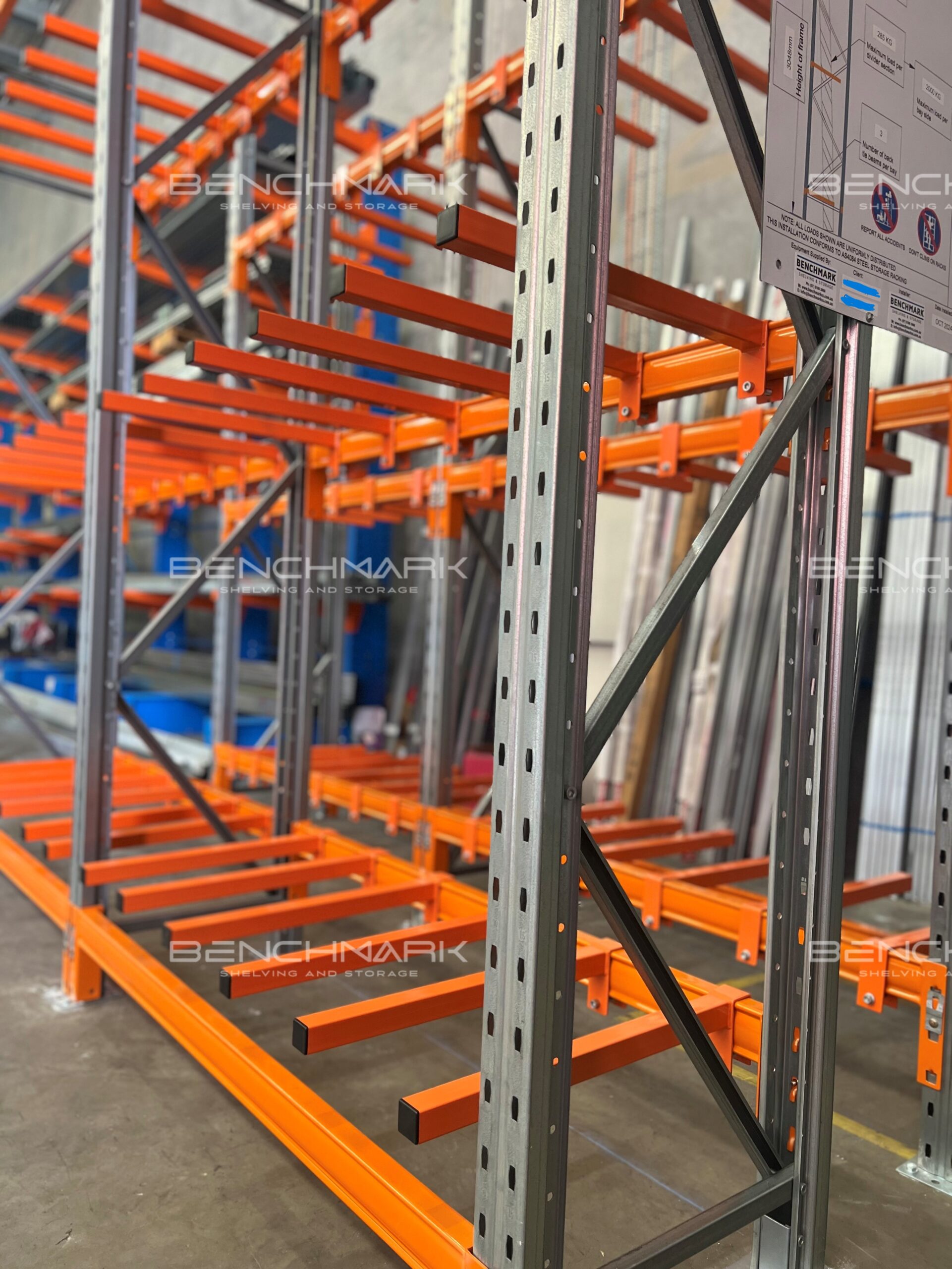

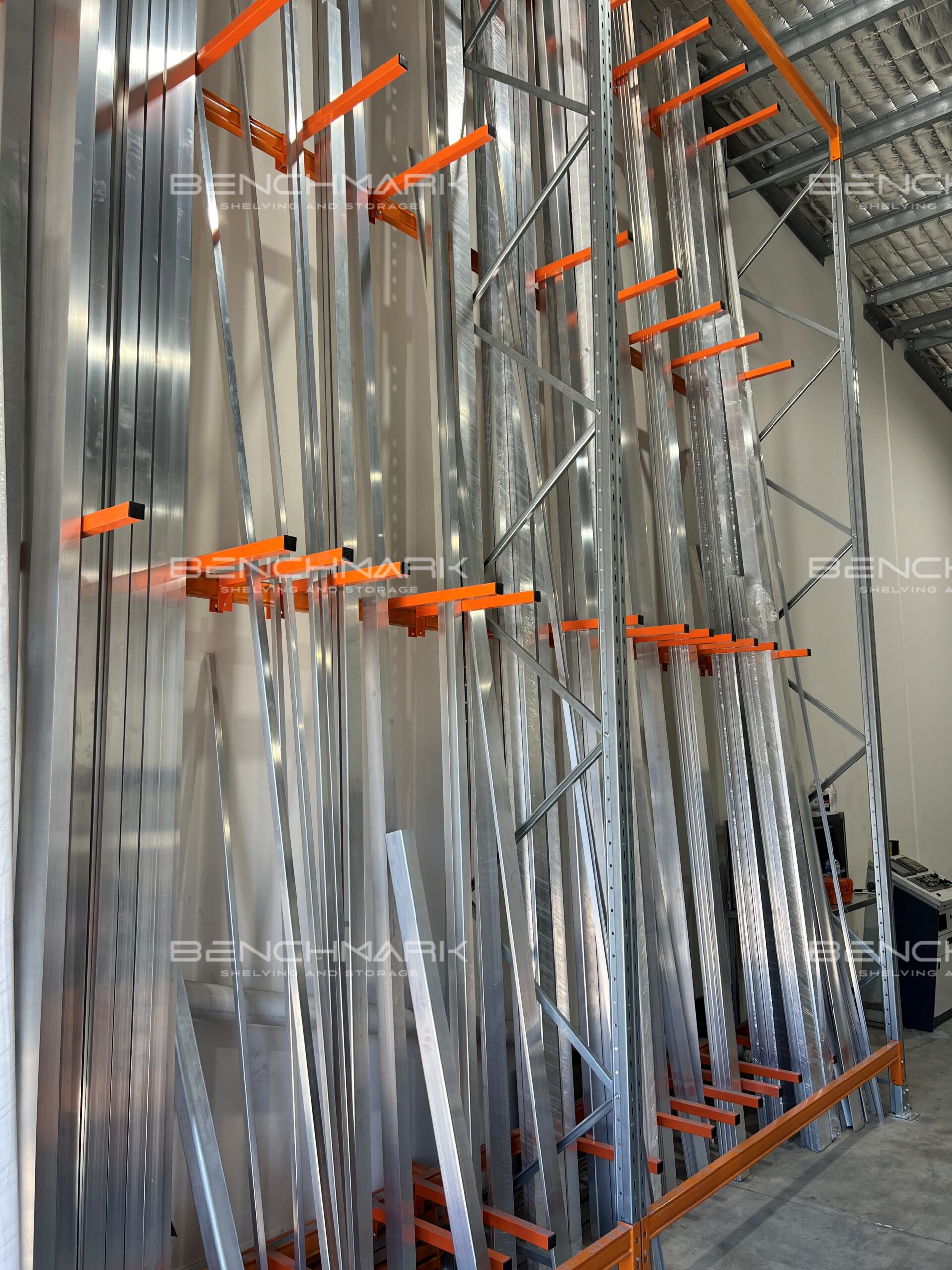

Optimise your warehouse space with Benchmark’s APEX Vertical Racking MK2—engineered for efficient, vertical storage of long products and materials. Available in single- or double-sided configurations, this system enhances accessibility while freeing up valuable floor space.

Key Features:

Seamless Integration: Compatible with standard pallet racking frames for unified vertical and pallet storage.

Configuration Options:

Single-sided: Ideal for wall placement
Double-sided: Suited for open warehouse areas

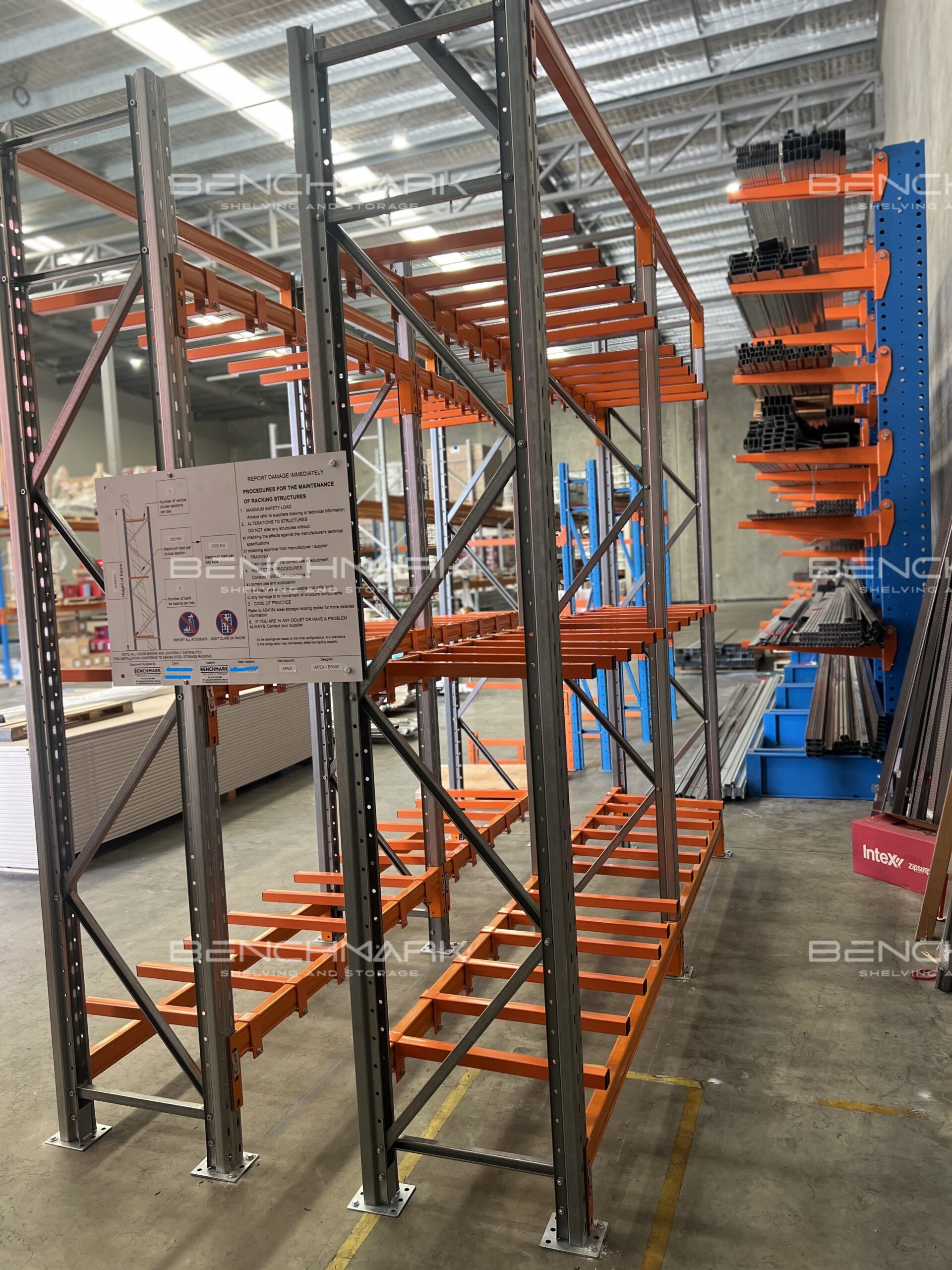

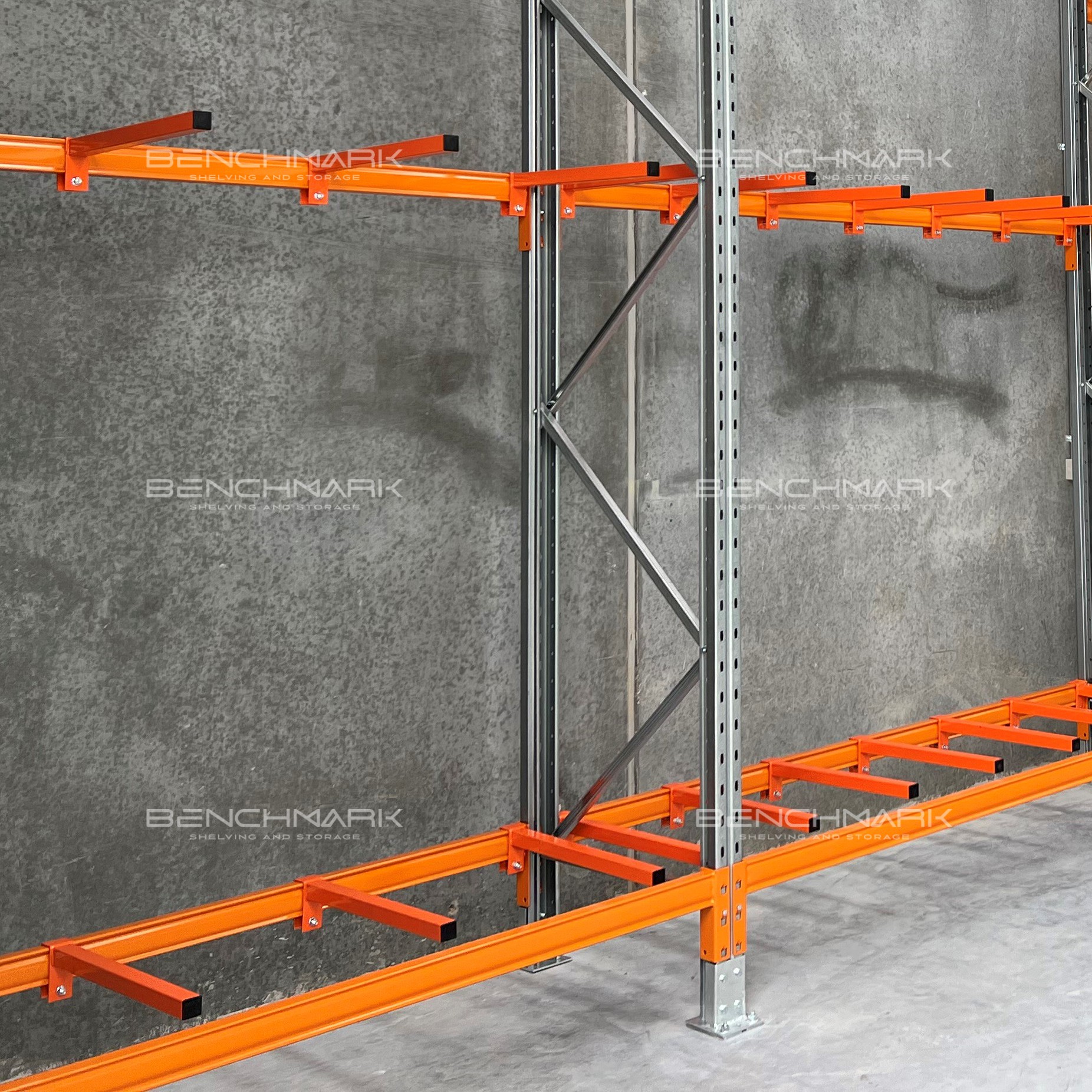

Adjustable Dividers: Each bay includes rear beams with 600mm non-load bearing dividers and front top/bottom beams to prevent product movement.

Load Capacity: 500kg per section (max)

Minimum Setup: Requires at least 2 bays

Explore available sizes in the Specifications tab or contact our team to tailor a solution for your space and product range.

Specifications

Frame Height (mm)	Bay Widths (mm) (Internal beam length)	Bay Widths (Overall Length)	Overall Depth			Maximum Allowable Load per bay	Suitable Accessories
			Single Sided (mm)	Double Sided (mm) [100mm back-to-back]	Double Sided (mm) [430mm row spacer]
2438 3048 3658 4267 4877 6096	1372 1524 1829 2134 2591 2743	Allow 100mm per frame	610	1320	1650	500kg/section maximum allowable load	Vertical Divider Square Tube 600mm To suit either 80x40mm or 100x50mm beams
			838	1776	2106
			1219	2538	2868

Hose Hangers are also available – 700mm long suitable for taking loads up to 60kgs UDL each. Only suits 100x50mm and 120x50mm beams

Apex Pallet Racking has been tested to and fully complies with latest Australian racking code AS 4084-2023

Notes

Racking must be installed as per 4084-2023
Apex heavy duty footplate must be used as a minimum requirement.
All footplates to be anchored to the floor using M10x80mm screw anchors or M12x100mm stud anchors.
Maximum 500kg between each divider arm section
All divider arm centers to be spaced no greater than 700mm apart
Vertical divider arms must be clamped to beams with 1 x M10 nut and bolt
Minimum requirements for back beams – contact your Benchmark rep for more information
Top beams must be in line with the top horizontals brace of the frame
